Combination Belt and Disc Sanders

The JET J-4002 Benchtop Belt and Sander features a power take off, which allows for mounting an optional flex shaft for carving, drum sanding, deburring and dozens of other jobs. Abrasive belt unit does the work of a jig saw, coping saw or hand file while removing material and finishing at the same time, allowing operator to get into small openings plus handle odd shapes and angles. Deluxe miter gauge turns and locks for common angles 45deg left and right. Application: Metal sanding and grinding, Belt Size (in. x in.): 1 x 42, Belt Speed (ft./min.): 3,000, Motor Phase(s): 1, Wheel Size (in.): 8, Wheel Included: Yes, Dimensions L x W x H (in.): 21 x 22 x 14, Includes: Belt

The Rockwell RK7866 Belt/Disc Sander is a versatile benchtop shop sander with a belt table that tilts 0 to 90-degrees and  acast aluminum disc table with a tilt range of 0 to 45-degrees.  The 1/2 HP motor of the RK7866 Sander produces a 3,450 RPM disc speed and a 1,700 SFM belt speed. Features: Table tilt range 0 to 90-degrees Powerful 1/2 HP motor for fast, efficient material removal Aluminum disc sander work table for support, tilts 0 to 45-degrees to accomodate angled work pieces Dust port for dust extraction option What's In The Box: Rockwell RK7866 Shop Series 4.3 Amp Belt/Disk Sander, 6-Inch Disc, 4 x 36-Inch Belt 5 Degree Miter Gauge Allen Key 4 x 36-Inch Sanding Belt 6-Inch Sanding Disc

Includes 4-in x 36-in Belt/Disc Benchtop Sander - 3375-01, 6-in Abrasive Disc, 4-in x 36-in Abrasive Belt, Adjustment Wrenches, Miter Gauge

Includes 31A Belt/Disc Sander - 1791291K

Loaded with innovative features, the Powermatic 31A Belt/Disc Sander has the power to accomplish even the most demanding tasks. Its heavy-duty, full cast-iron construction allows both metalworking and woodworking to be done on the same machine, saving space and money while maximizing the capabilities of both abrasive types.

The 31A Belt/Disc Sander At a Glance: For both metal and woodworking applications 1-1/2 hp TEFC motor mounted within enclosed base cabinet Large 17.25" by 9" cast-iron table provides solid, spacious platform 4" dust port keeps shop and air clean Miter gauge slots and positive stops for fast setup

The table tilts up to 45°. View larger.

Powerful 1-1/2 Horsepower Motor
The Powermatic 31A is a solid, full-feature sanding machine that has a 1-1/2 horsepower TEFC (totally enclosed fan cooled) motor mounted within the enclosed base cabinet. The 31A comes wired for 115-volt, 12-amp, one-Ph current, yet it can be converted to use 230-volt, six-amp power for greater versatility.

The motor delivers power to the belt and disc units via a pair of balanced pulleys and a V-belt. The belt is easily accessible for tensioning adjustments through a large door on the rear of the base cabinet.

Fully Welded Base Cabinet for Stability
The fully welded, all-steel enclosed base cabinet measures 20.0 x 27.5 x 17.25 inches (W x H x D), providing a stable platform for the entire machine in addition to enclosing and protecting the motor and dust collection chute.

The height of the base cabinet places the disc sanding table 34.5 inches off the floor and the belt (in the horizontal position) to 37 inches. These heights plus the total weight (246 pounds) and stability of the cabinet make the Powermatic 31A easy and comfortable to work with.

Cast-Iron Table Provides Ample Workspace
A large 17.25- by 9.0-inch cast-iron table provides a solid, spacious platform that both supports and stabilizes even the largest project pieces.

The table tilts up to 45 degrees and is secured by large hand wheels on either side. A full-sized miter slot accepts the included miter gauge, making it easy to build specialty jigs.

Versatile, User-Friendly Operation
The Powermatic 31A offers true versatility. First, the belt can be used in both the horizontal and vertical positions--and just about any angle in between. The multipurpose cast-iron table allows you to work at different angles, giving you greater project flexibility. You can also remove the top guard for contour sanding jobs.

To help ensure long life and user-friendly operation, the Powermatic 31A features a four-inch-diameter dust port for effective dust evacuation to keep your shop and your air cleaner, improve visibility, and protect components from damaging debris. At the same time, the cast-iron table with miter gauge slots and positive stops make setup fast, accurate, and simple for any angle.

The Powermatic 31A is backed by a five-year warranty.

What's in the Box
One Powermatic 31A, one abrasive belt, one abrasive disc, one disc table assembly, one fence assembly, one miter gauge assembly, two bags of fasteners, one stand with motor, one dust outlet, manual, and warranty card.

The belt can be used in both the horizontal and vertical positions. For contour sanding, the top guard is easily removable.

Allows for sanding, grinding or finishing of outside curves or odd shaped workpieces on the belt. Deluxe miter gauge that turns and locks for common angles 45° both left and right.

Includes 6-in x 48-in Belt / 9-in Disc Combination Bench Top Sander - 708595, Sanding Belt, Sanding Disc, Miter Gauge, Horizontal Backstop, Circle Jig

Whether you're removing a large amount of stock or just making the finest changes, this Jet belt/disc sander is definitely up to the task. A 3/4-horsepower motor supplies all the power you need for serious stock removal, and the platen has a graphite sheet that helps keep things cool, so you get more life out of both the sander and the belts.

The 9-inch disc sander's table is a generous 7-1/2-by-12-inch cast iron surface, with preset stops at 45 and 90 degrees for reliable angles and nice miter gauge T-slots parallel and perpendicular to the disc. But even better, we think, is the belt sander that operates both horizontally and vertically -- and everywhere in between. The table isn't as large as that of the disc sander, but it's really not necessary, and it functions nicely as a work stop in the horizontal position. The only thing we don't like -- and it's a matter of preference, really -- is that we found the power switch awkward to reach when using the belt sander in the flat position, as it's on the other side of the tool.

Adjustments are all quick and easy, especially changing out the belt. All it takes is a flip of the quick-release belt tension lever, and you'll be back to work in a minute. Tracking is an easy task as well, one we appreciate that Jet made so simple. First, pull up the handle of the tracking lock, then just turn the adjusting knob until the belt is centered on the platen. Lock the handle again, but watch carefully: You may need to fine-tune with the knob again, as the belt tends to shift slightly to the left when the tracking lock is engaged again. Once centered, though, the belt will stay put, thanks to the rubber-coated drive drum that keeps a good grip on the sanding belt.

One of the things we liked best about this sander is its clean dust-collection setup. One 4-inch port on the base directs the lion's share of sawdust into your system, whether you're using the belt or the disc. There's even an integrated blast gate to direct the suction to whichever sander you're working.

This is a hefty machine, and though it's possible to bolt it to a workbench or buy a separate stand for it, it feels very stable when simply placed on a flat surface like a workbench, and in a smaller shop, that's a great advantage.

Fit and finish are, of course, excellent, as with any Jet tool, and any woodworker will find a thousand uses for this versatile, hardworking machine in the shop. --Kris Jensen-Van Heste

This stationary bench top Combo Sander offers all the power and control you need for sanding smaller workpieces for less than the cost of a portable belt sander. Compact design is great for the smaller workshop. Other features: single knob tracking; 2-1/2" dust ports for belt and disc; belt platen rotation of 0-90 degrees; approximate shipping weight of 38 lbs.

A perfect match to your bandsaw or scroll saw, this Combination Belt/Disc Sander will shape and smooth right to the line. A 1/3 HP, TEFC capacitor start induction motor powers the 1" x 42" belt and 8" disc through any sanding chore and the cast iron tilting tables give you the flexibility you demand. Includes single knob tracking and two 2" dust ports. Approximate shipping weight is 63 lbs.

Includes 6-in x 48-in Belt / 12-in Disc Combination Sander w/ Open Stand - 708599K, Sanding Belt, Sanding Disc, Miter Gauge, Horizontal Backstop, Heavy-Duty Open-Style Stand

Jet's disk-and-belt-sander combination brings professional-quality sanding to any shop setting. Set on an open steel stand, both tools run off a center-balanced, fully encased induction motor that's prewired for 115-volt outlets. The 1-1/2 horsepower motor delivers plenty of power for most loads and applications. We appreciate the convenience of a single 4-inch dust chute that comes pretty close to meeting the manufacturer's claim of collecting 95% of removed material.

The 6-by-48-inch belt sander cycles at 2,500 sfpm and can be adjusted to operate both vertically and horizontally, and the cast-iron, miter-slotted table tilts to accommodate almost any sanding application. Unique thumbscrews make tracking adjustments quick, easy, and fairly consistent. The Jet sports a graphite platen to reduce heat and help increase belt life. The 12-inch disk sander removes material quickly with little vibration and, like the belt sander, features a pivoting cast-iron table with a miter slot. Both tables have positive stops at 45 and 90 degrees. We appreciate the pad-lockable start button that comes standard on all big Jet tools and prevents accidental start-up and unauthorized use. --Justin Paul

Includes Sander Insert Plate for XBench Workstation - 3100-10, Mounting Hardware

- Double sealed ball-bearing construction.
- Adjustable aluminum tool-rest.
- Flexible “gooseneck” style work light.
- Quick change belt tension lever facilitates fast belt changes.
- Belt sander operates horizontally and vertically and can be locked at any angle in between.
- Perfect for knife honing and sharpening or general shop use.
- 3450 RPM grinder speed to handle just about any metal grinding application and 4900 FPM belt speed for sanding both hard and soft woods.
- 1- 60 grit sanding belt & grinding wheel included.
Belt size 1 3/4” x 31 7/8” (44 x 810 mm)

Wheel size 6” x 3/4” x 1/2” (152 x 19 x 13 mm)
Belt speed 4900 FPM (1500 MPM)
Grinder speed 3450 RPM
Motor 1/3 HP, 120 V, 3.7 A
Weight 33 LBS (15 kg)

This is a factory reconditioned product. Reconditioned generally means that the product has been returned to the manufacturer, who brings the product back to like new condition. Some products may contain cosmetic blemishes. Includes 4-in x 36-in Belt/Disc Benchtop Sander - 3375-01-RT, Adjustment Wrenches, Miter Gauge

RIKON introduces a new bench top combination sander to their lineup. Powerful 1/3 HP totally enclosed fan cooled motor spins the 5" disc at 3,450 RPM and the 1" x 30" belt at 3,340 SFPM for fast stock removal. The large 7- 1/4" x 3- 3/4" cast aluminum disc table tilts 0-45º. The belt table tilts for chisel sharpening. Removable belt platen allows sanding of curves or odd-shaped material. The solid steel base utilizes rubber feet and strong cast aluminum frame for minimal vibration and maximum rigidity. Includes two 1- 1/2" dust ports.

The DELTA 31-735B 6-Inch/12-Inch 1-1/2 HP Belt/Disc Sander with Dust Bag is strong enough to handle 95 percent of your finishing operations. Ideal for both metal shops and woodworkers, the sander includes a 1.5 HP motor that flawlessly operates with its 2,100 RPM 50-grit aluminum oxide disc sander and 3,030 RPM 80-grit aluminum oxide belt unit. The belt is designed to operate vertically, horizontally, or at an angle. Large ribbed tables on both sanders are designed to prevent distortion. The belt table can be tilted 45 degrees out and 20 degrees in, while the disc table tilts at 45 degrees out for impeccable angle finishing. In addition, a sliding pivot pin allows for circle sanding. The sander includes a 4-inch dust port and built-in dust collector fan. Three-phase electricals are included and wired for 230-volt unless 460V is specified. The power cord and plug are designed for single phase only.

Includes 6-in x 48-in Belt / 9-in Disc Combination Sander w/ Open Stand - 708596K, Sanding Belt, Sanding Disc, Miter Gauge, Horizontal Backstop, Circle Jig, Heavy-Duty Open-Style Stand

Complete with built-in handles for easy portability, the JET 708596K JSG-96OS 6-Inch/9-Inch 3/4 HP Open Stand Belt/Disc Sander, 115-Volt 1-Phase is a combination belt/disc sander that comes complete with 3/4 HP motor for plenty of power to both sanders, a heavy-duty open-style stand, and two work tables. This versatile tool makes sanding tasks easier, more accurate, and less time-intensive for higher-quality results.

The JET JSG-96OS 6-Inch/9-Inch Open Stand Belt/Disc Sander offers: A 3/4 HP, 110-volt, TEFC motor for dependability Exclusive dual thumbscrew belt tracking adjustment locks for precision A nine-inch diameter disc that spins at 1,725 RPM A 6 x 48 inch sanding belt that runs at 2,258 SFPM A full-featured miter gauge and versatile fence

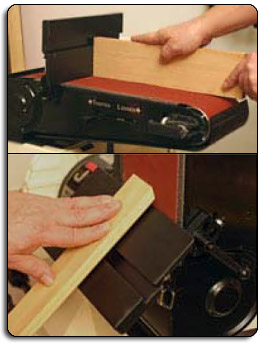

The belt can be positioned flat or fully vertical for improved versatility.

The JSG-96OS is a versatile, stable, and powerful snading unit. View larger.

The cast-iron table tilts to 45-degrees.

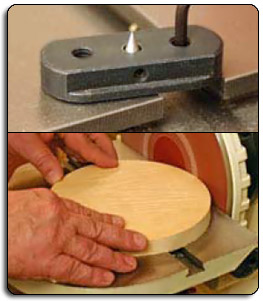

The specially designed center point (top) fits the miter slot on the cast iron table and makes sanding perfectly round disks safe and easy.

Finger operated latches open doors to make changing belts fast and tool free.

Powerful Mounted Motor for Robust, Stable Performance
The JSG-96OS is powered by a robust 3/4 HP, 110-volt, TEFC (totally enclosed fan cooled) motor mounted in a heavy-duty base. The base also supports the nine-inch diameter disc and belt systems (measuring 6 by 48 inches) to create a solid and very stable unit.

Dual Thumbscrew Adjustment for Precision
The JSG-96OS boasts Jet's exclusive dual thumbscrew belt tracking adjustment locks--an innovative feature that keeps the belt on track during use, which helps ensure precise results.

Sealed Ball Bearings and Steel Platen for Exceptional Durability
Built to last, the JSG-96OS offers exceptional durability for long-term reliability. Sealed, permanently lubricated ball bearings at all major friction points reduce maintenance and help provide an extended, trouble-free life, while the graphite-covered steel platen runs cooler, thereby preventing heat damage.

Single Dust Port Collects From Both Belt and Disc
To help keep your workspace clean, healthy, and dust-free, this tool features an effective dust collection system. This system has a single four-inch dust port on the back of the base that evacuates debris from both the disc and belt through specially designed shrouds that maximize its effectiveness.

Clever and Efficient Disc Section Design
The nine-inch diameter disc spins at 1,725 RPM (no load) and accepts adhesive-backed discs. Additionally, the heavy-duty disc plate is machined flat for super-smooth sanding and resists warping or deflection under all normal sanding conditions. To enhance dust collection and safety, a hinged door covers the lower portion of the sanding disc. Opening the door provides easy access to the complete disc for replacement of the abrasive.

Belt Section Offers Maximum Versatility
Measuring 6 x 48 inches, the sanding belt runs at 2,258 SFPM (surface feet per minute) and offers plenty of surface area to handle the big jobs. Its overall size also allows you to distribute wear over a larger area, which substantially increases the life of the abrasive.

For added convenience, the belt runs on high-quality rollers, mounted in a fully adjustable arm for maximum versatility. A rubber-coated drive drum helps to maintain belt speed.

Cast-Iron Sanding Disc Table for Stability and Flexibility
The cast-iron sanding disc table measures 10 inches wide and 12 inches in length, and has lots of surface area to help support large work pieces. The table also features a unique curved shape that makes it easy to use in a wide range of sanding operations. It's also fully adjustable and tilts up to 45 degrees. For added convenience, a handy scale under the table shows the current amount of tilt and makes setting specific angles fast and easy.

Disc Table Mount for Increased Versatility
To make the belt even more versatile, a mount for the disc table can be used at the belt as well (the belt table must be removed). This is particularly useful when using the center point device or sanding an odd-shaped work piece.

Miter Gauge and Pivoting Fence for User-Friendly Operation
The JSG-96OS comes with a full-featured miter gauge, and a fence measuring 5.5 x 2 inches tall to securely hold stock or attach shop-made jigs. This fence also pivots 60 degrees to the right or left and is locked with the twist of the push handle. Finally, the miter gauge has a steel guide bar fitted with a T-slot follower that prevents lifting or rocking during sanding.

The JSG-96OS is backed by a five-year warranty.

About JET: A History of Sharing New, Feature-Rich Products
Opened in 1958 after the founder of the company, Leslie P. Sussman, took the first Boeing Jet Airplane trip from Seattle, Washington to Japan, JET began as a small dealer that sold air hoists and trolleys out of a single hardware store in Seattle. Over the years, JET has carried everything from snowmobiles, transmitter radios, and forklifts to nylon stockings, but by the early 1970s, metalworking had become the base of their business line. And by the 1980s, JET had expanded into the realm of woodworking. Today, you'll find that JET offers a wide range of popular woodworking tools that are backed with best-in-class features and excellent service.

What's in the Box
One sander, one sanding belt, one sanding disc, two tables, one center point, three handles (one with brass insert), two 5/16-inch flat washers, one miter gauge, owner's manual, and warranty card.

Disc table tilts 0 - 45, belt table tilts 0 - 60. Both disc and belt tables have a graduated scale to show angle of tilt. 3" Idler drum for contour sanding. Dust collection on both disc and belt housing. Dual voltage 120/240V, 1 phase (pre-wired for 120V). CSA NRTL/C certified. OSHA compliant. Includes one medium grit 6" x 48" belt, one medium grit PSA sanding disc, miter gauge and power cord. 2 YEAR WARRANTY.

The DELTA 31-695 6-Inch/9-Inch 1 HP Open Stand Belt/Disc Sander includes an adjustable 80-grit abrasive belt unit that operates vertically, horizontally, at an angle, or can be removed for contour sanding jobs. The sander is powered by a 1 HP, 120-volt induction motor, which runs a 9-inch disc sander that spins at 2,800 RPM. The 48-by-6-inch adjustable belt is kept in aligned by an easy-to-use belt tracking knob. It cycles at 2,200 square feet per minute across a graphite pad that reduces friction heat and preserves belt quality and life. The cast-aluminum worktable includes a miter gauge slot and tilts at 45 degrees for versatile surface work. The sander also includes a 2-1/4-inch dust port that connects to a standard shop vacuum and a steel stand with non-slip pads.
